Water Level Glass
$249.00
Skip to product information

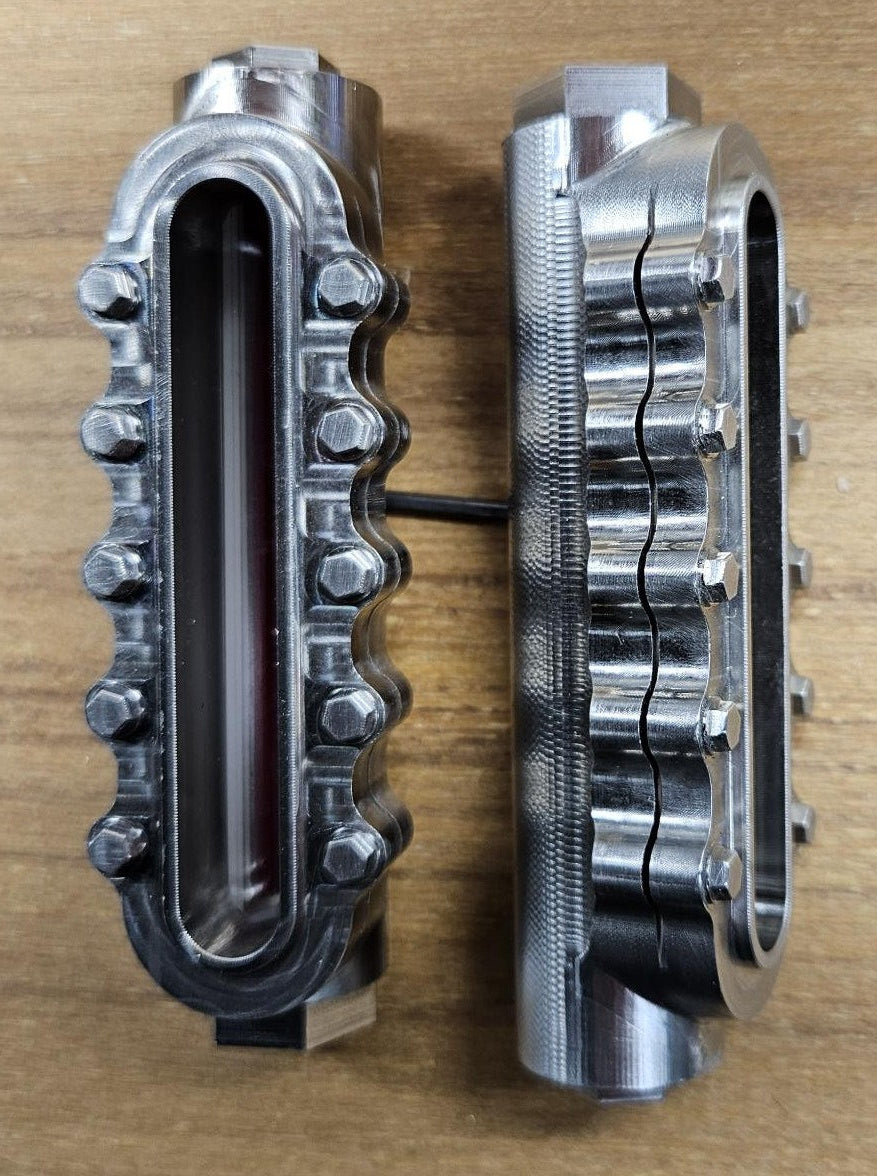

Water Level Glass
$249.00
Milled from solid stainless steel. Can be used to monitor liquid levels in tanks and vessels. Red Line glass insert is replaceable. 1/2" OD glass is rated for 300 PSI at 425 DegF.
- Top and bottom connections are 5/16"-27 Model Pipe Taper (1/16"-27 NPT)
- Stainless has been nickel plated
- 3.800" tall x 1.125" wide. Piping centerline to back is .450", 1.050" total deep
- Great for large live steam boilers. 2.75" viewable level range
- Can be backlit for night viewing
